3D Print Recycling Pelletizing System
3D Print Recycling Pelletizing System
Couldn't load pickup availability

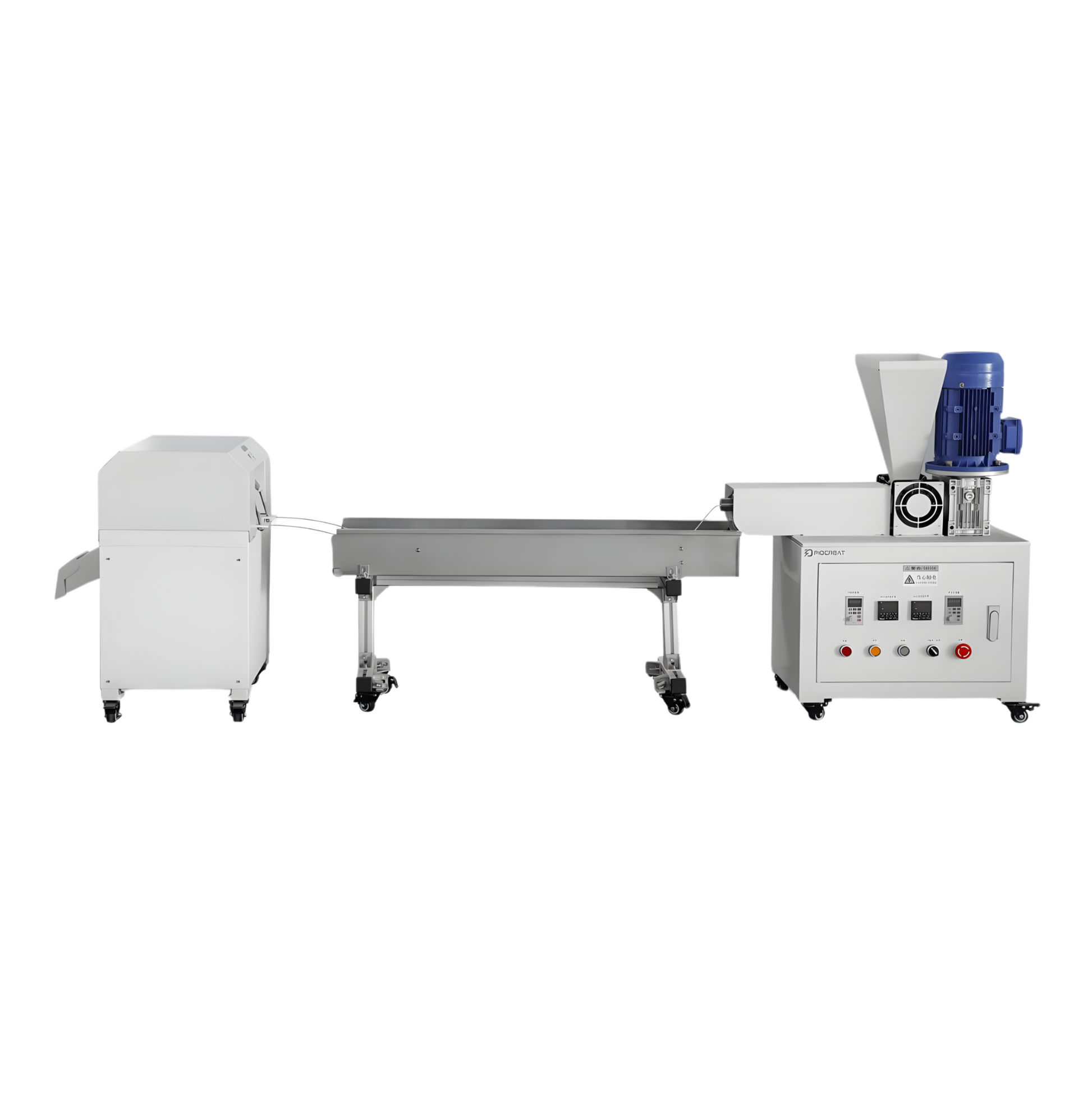

3D Print Recycling Pelletizing System
Complete In-House Filament & Granule Recycling Solution
Transform discarded 3D-printed parts into reusable pellets and filament — all in one integrated system.
The Recycling Pelletizing System is a compact, industrial-grade solution designed specifically for 3D printing waste recovery. It converts failed prints, supports, and scrap models into clean granules or filament through a streamlined crushing, melting, extrusion, cooling, and pelletizing workflow.
Perfect for print farms, R&D labs, schools, and sustainable manufacturing operations looking to reduce material waste and lower filament costs.
How It Works
-
Crushing
Discarded 3D-printed parts are shredded into small fragments. -
Melting & Extrusion
The crushed material is heated until molten and extruded into filament. -
Cooling
Filament passes through controlled cooling wires for dimensional stability. -
Pelletizing
The cooled filament is cut into uniform plastic granules, ready for reuse.
Key Advantages
Designed for 3D Printing Waste
Optimized for FDM / FFF printed plastics and failed prints.
Compact, Integrated System
All modules work together seamlessly with a minimal footprint.
Stable Temperature Control
Precise heating control up to ≤300°C ensures consistent extrusion.
Flexible Output Options
Produce filament or pellets depending on your workflow.
Industrial Reliability
Built with high-quality motors, reducers, and control components for continuous operation.
Eco-Friendly & Cost-Saving
Reduce raw material costs while supporting a circular manufacturing process.
Pulverizing Unit – CXSD-ZL30
| Feature | Specification |
|---|---|
| Design Capacity | 3 kg/hour |
| Pulverized Material Size | ≤5 × 5 × 5 mm |
| Extrusion Direction | Right to Left |
| Heating Temperature | ≤300°C |
| Control Area | 2 |
| Power Supply | AC 220V |
| Motor Power | 1.5 kW |
| Heating Power | 1.8 kW |
| Machine Size | 720 × 400 × 920 mm |
Pelletizing Unit – CXSD-QL30
| Feature | Specification |
|---|---|
| Pelletizing Capacity | ≤20 kg/hour |
| Pellet Size | ≈ Φ3 × 3 mm |
| Power Supply | AC 220V |
| Equipment Power | 1.5 kW |
| Machine Size | 500 × 500 × 700 mm |
Entire System
| Feature | Specification |
|---|---|
| Rated Total Power | 4.8 kW |
| Package Size | 1250 × 640 × 1088 mm |
Ideal Applications
- 3D printing farms
- Rapid prototyping labs
- Universities & research institutions
- Sustainable manufacturing facilities
- Filament recycling & development projects
What’s Included
- Pulverizing unit (CXSD-ZL30)
- Extrusion & cooling module
- Pelletizing unit (CXSD-QL30)
- Integrated electrical control system
- User manual & safety documentation
