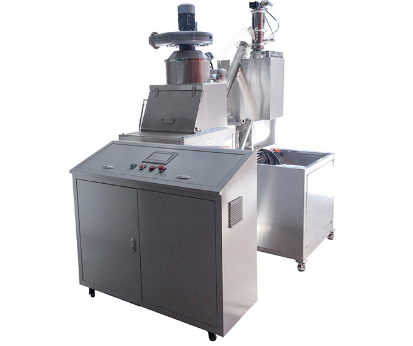

FLAutoMix Automatic Concrete Mixing & Batching System

Product Overview

The FLAutoMix is an automatic concrete mixing and batching system designed to support 3D concrete printing (3DCP) operations. It integrates dust-free material feeding, liquid additive delivery, mixing, and controlled discharge into a compact, enclosed system.

The ZCC08P enables precise control of concrete material preparation, improving consistency, cleanliness, and efficiency when used with concrete 3D printers and pumping systems.

Without the FLAutoMix Automatic Concrete Mixing the concrete must be mixed manually before feeding into the pump

Key Features

• Designed for automatic concrete mixing and batching in 3D printing applications
• Fully enclosed system with dust-free feeding station
• Integrated additive delivery system for liquid components
• Controlled mixing process for stable and uniform concrete output
• Compact structure suitable for laboratory and industrial environments
• Compatible with concrete 3D printers and screw-type pumps

System Functions

• Automatic feeding of dry concrete materials
• Automatic conveying of liquid additives
• Enclosed dust control during material handling
• Controlled mixing to achieve uniform concrete consistency
• Continuous or batch operation to support 3D concrete printing workflows

Application Scenarios

• 3D concrete printing systems
• Concrete material preparation for extrusion-based printers
• Research and development laboratories
• Pilot production and small-scale industrial printing
• Integration with concrete pumps and 3D printers

________________________________________________________________

Technical Specifications

Dust-Free Feeding Station

• Volume: 40 L
• Conveying Flow Rate: 15 L/min

Additive System

• Volume: 25 L
• Conveying Flow Rate: 10 L/min

Wind Booster

Volume: 60 L

Mixing Bin

• Mixing Volume: 60 L
• Usable Volume: 30 L
• Mixing Speed: 37 r/min
