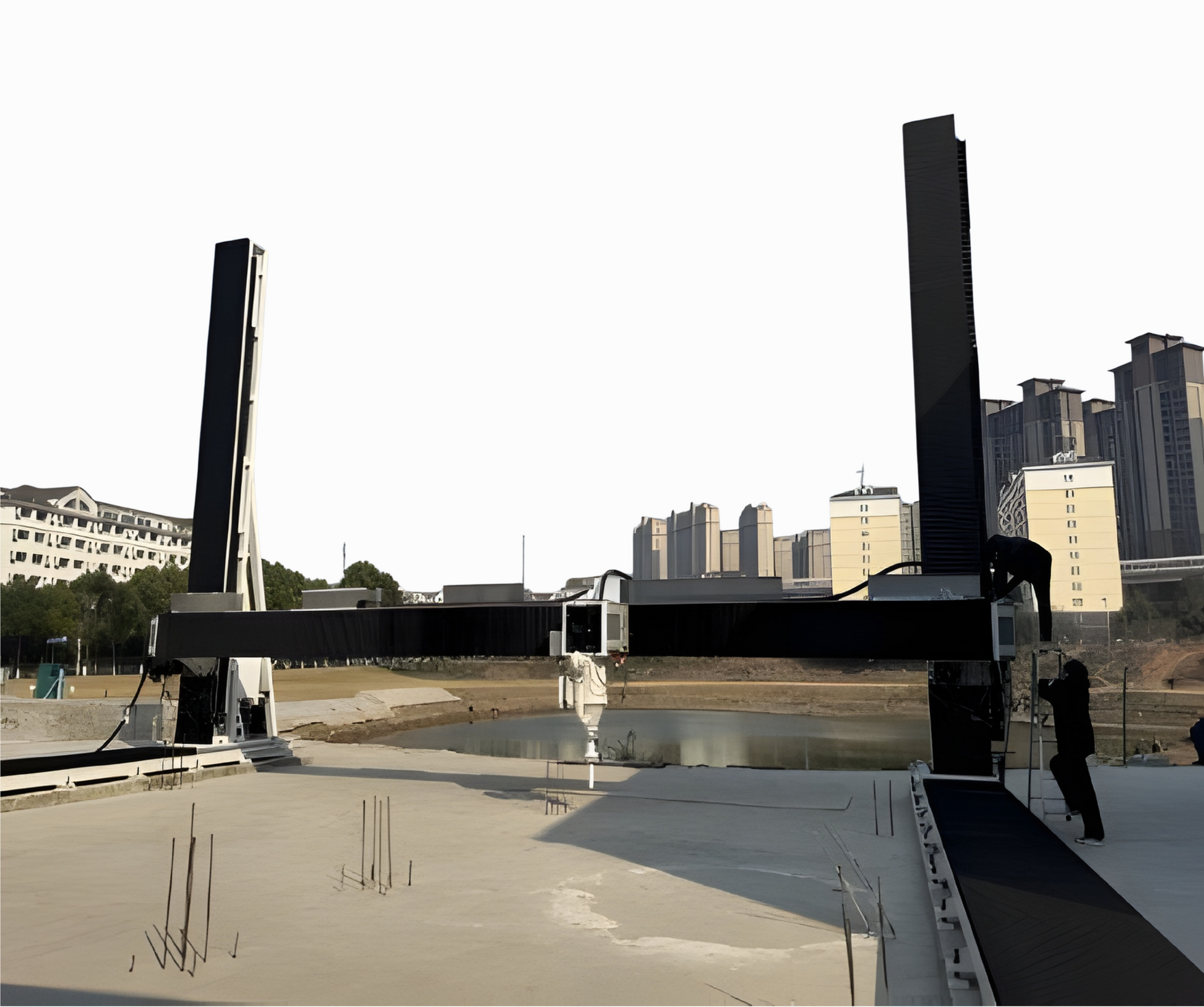

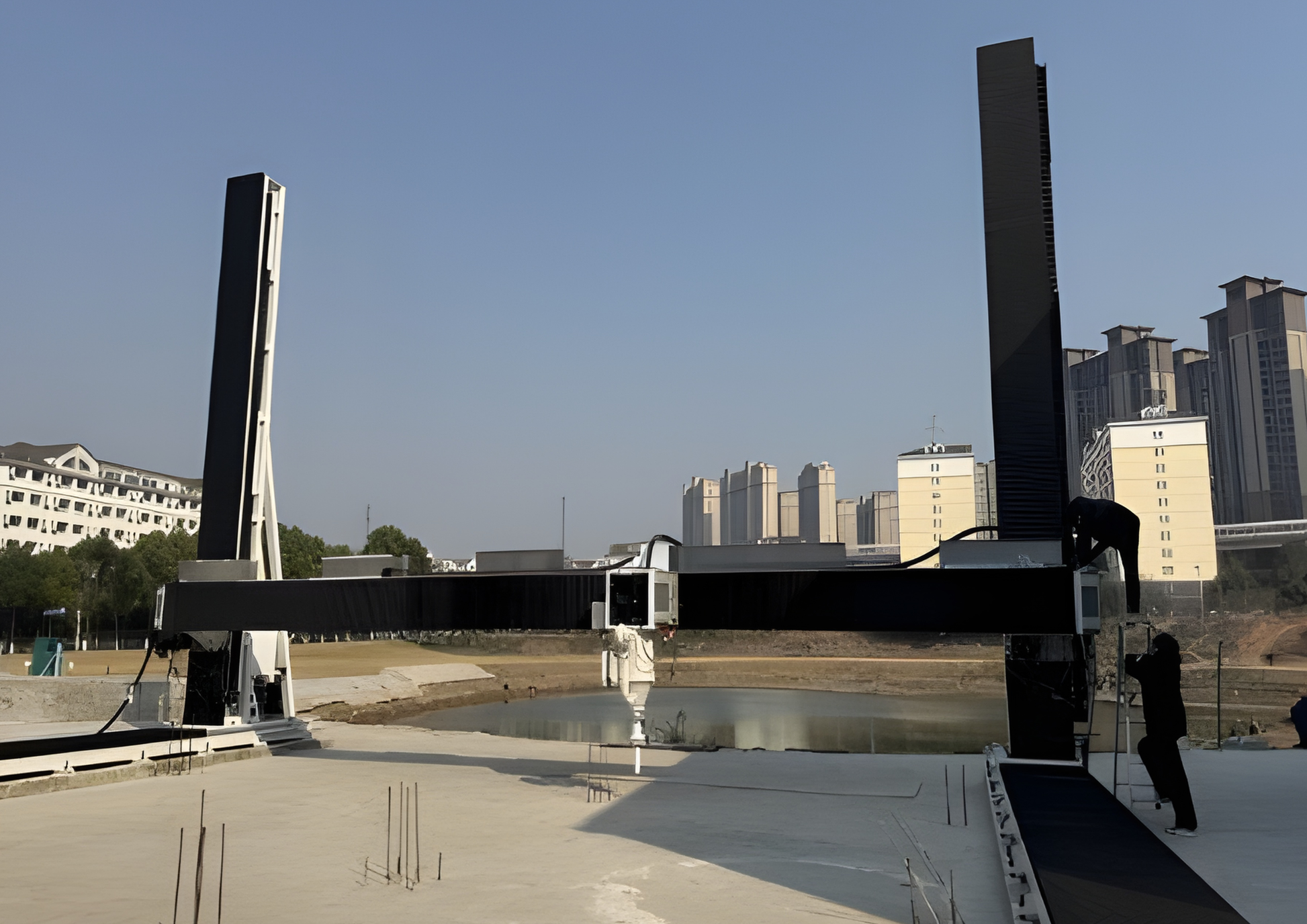

FLCP10060G Gantry-Type Concrete 3D Printer

Product Overview

The FLCP10060G is an ultra-large gantry-type 3D printer designed for extrusion-based concrete 3D printing of full-scale construction components. With a massive build volume and heavy-duty gantry structure, the FLCP10060G is suitable for printing large concrete structures, infrastructure elements, and industrial construction parts.

The system uses pump-fed concrete delivery and supports full integration with an automatic concrete batching and mixing system, enabling continuous, automated, and industrial-grade concrete 3D printing.

Key Features

• Ultra-large gantry-type concrete 3D printing system
• Extra-wide and tall build volume for full-scale concrete structures
• Heavy-duty gantry structure for stable large-area printing
• Modular concrete extruder design for fast disassembly and cleaning
• Large-diameter concrete nozzle options for high-output extrusion
• Intelligent automatic concrete feeding with PID control
• Supports fully automatic concrete batching and mixing systems

Concrete Material Compatibility

• Cement-based concrete suitable for extrusion-based 3D printing
• Printable concrete mixes with controlled aggregate size

Feeding & Control System

• Feeding Method:
  • Pump feeding
• Automatic Concrete Feeding Function:
  • Automatic concrete material detection
  • PID closed-loop control
  • Automatic adjustment of feeding speed
• Automatic Concrete Batching & Mixing System Support:
  • Automatic weighing and batching of powder and liquid materials
  • Automatic cleaning function
  • Fully enclosed structure with integrated dust removal system
  • Fully automated and adjustable process control

Applications

• Full-scale concrete construction components
• Large architectural and infrastructure elements
• Precast and on-site concrete printing projects
• Construction research and industrial demonstration facilities
• Large-format concrete additive manufacturing

Technical Specifications

Printing Parameters

• Mold Dimensions (Build Volume): 10000 × 6000 × 3500 mm
• Mold Layer Thickness: 3.0 – 20.0 mm
• Printing Speed: Up to 230 mm/s
• Extruder Capacity: > 3 L

Machine Specifications

• Overall Dimensions: 13800 × 8800 × 5250 mm
• Machine Type: Heavy-duty gantry structure

Extrusion System

• Concrete Nozzle Diameters: 20.0 mm / 30.0 mm / 40.0 mm
• Screw Type: 3D curved screw (non sheet-welded design)
• Extruder Design:
  • Quick-release modular structure
  • Disassembly into more than 4 sections
  • Quick connectors instead of screw fixation
