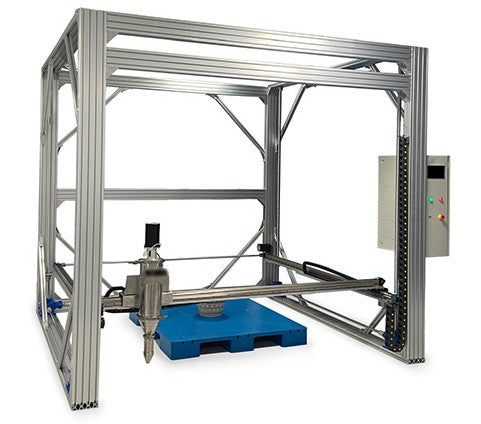

FLCP1215 Concrete 3D Printer

Product Overview

The FLCP1215 is an industrial concrete 3D printer designed for high-precision extrusion of cement-based materials. With a large build volume, modular extrusion system, and intelligent feeding control, the FLCP1215 is suitable for printing concrete components, architectural elements, and construction prototypes.

The machine supports both manual and pump feeding and can be integrated with a fully automatic concrete batching and mixing system for continuous and stable printing operations.

Key Features

• Large-format concrete 3D printing capability
• High-speed extrusion with stable material output (up to 350mm/s)
• Modular extruder design for fast cleaning and maintenance
• Multiple concrete nozzle options for different structural requirements
• Infrared heating system to accelerate concrete curing
• Intelligent automatic feeding with PID control
• Expandable system supporting automatic concrete batching and mixing

Feeding & Control System

• Feeding Methods:

  • Manual feeding

  • Pump feeding

• Automatic Feeding Function:

  • Automatic concrete material detection

  • PID closed-loop control

  • Automatic adjustment of feeding speed

• Automatic Batching & Mixing System (Optional):

  • Automatic weighing and batching of cement, aggregates, and liquids

  • Fully enclosed structure with integrated dust removal system

  • Fully automated and adjustable process control

Optional Configurations (Provided Separately)

• Automatic concrete batching and mixing system

• Concrete pumping system


• Concrete mixing system


• Custom concrete nozzle sets

• Material handling accessories

Technical Specifications

Printing Parameters

• Build Volume (Molding Size): 1400 × 1200 × 1400 mm

• Layer Thickness: 3.0 – 20.0 mm

• Printing Speed: Up to 350 mm/s

• Extruder Capacity: > 3 L

Machine Specifications

• Machine Dimensions: 2330 × 2600 × 2010 mm

• Frame Structure: Four screw rods + light rod structure

• Z-Axis Drive: Four-axis linkage controlled by a single motor

Extrusion System

• Nozzle Diameters: 10.0 mm / 15.0 mm / 20.0 mm

• Nozzle Types: Round, triangular, and rectangular concrete nozzles

• Screw Type: 3D curved screw (non sheet-welded structure)

• Extruder Design: Quick-release modular structure, divided into 4 or more sections for easy cleaning
