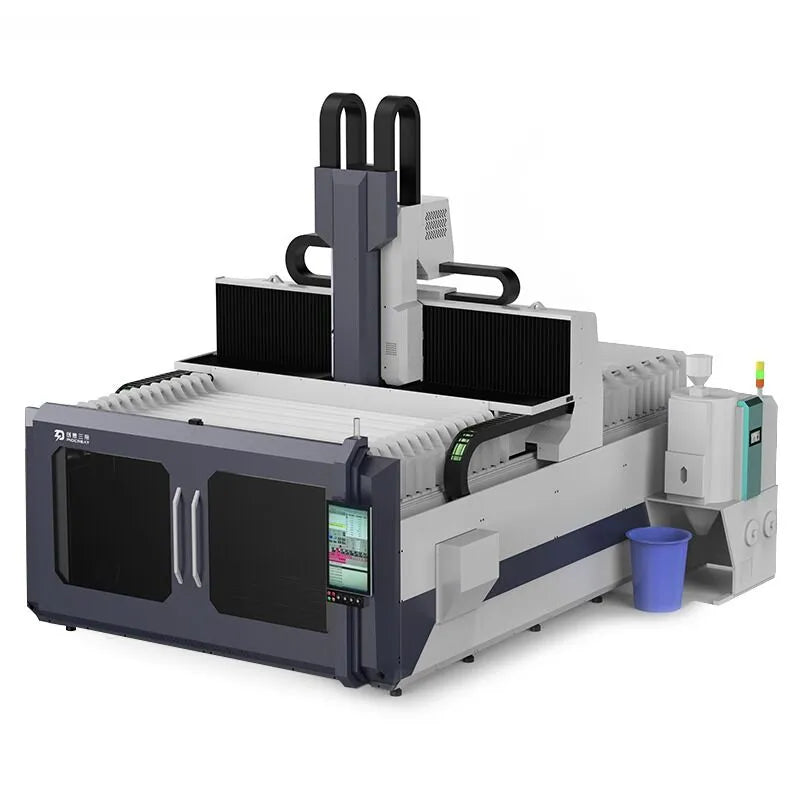

FGF Pellet 3D Printer G40
FGF Pellet 3D Printer G40
Couldn't load pickup availability
G40
Large Scale, Built Volume : 3725×2500×1330mm
The G40 pellet extruder 3d printer merges large-scale, high-speed 3D printing with CNC five-axis manufacturing, excelling in thermoplastic extrusion. It’s a combined additive and subtractive machine that 3D prints workpieces nearly to final size then mills them to precise specifications. This enhances production speed, cuts costs, and optimizes material use. Ideal for large patterns, molds, batches, and prototypes, it’s widely used in manufacturing, automotive, aerospace, and marine industries.
Nozzle Temperature Up to 450℃
With its ability to heat up to 450℃, the G40 enables the processing of a vast array of thermoplastics and composites, including PLA, PETG, ABS, PC, PA and other composite materials. This flexibility ensures that users can select the ideal material for each project, tailoring their approach to leverage specific material properties for better outcomes.
High Flow Screw Extrusion
The G40 advances extrusion efficiency with its high-flow, 3-8mm screw nozzles, achieving high flow rates (up to 25kg/hr) and maintaining quality. Its gantry precision is ±0.02mm/1000mm. The printer impressively runs at 10m/min and processes at 15m/min, ideal for additive and subtractive manufacturing, highlighting its rapid and reliable production capabilities.
Large Working Space
The G40 Pellet 3D Printer boasts an impressive large working space of 3725×2500×1330mm, providing ample room for the production of various large-scale components. This spacious build area is ideal for the creation of expansive patterns, full-scale molds, and substantial functional prototypes.
CNC Five-axis Head
The G40 boasts an 8.5KW/24000 hvct and advanced CNC five-axis head for high precision. Its A axis offers +120° and the C axis +320° rotation, ensuring flexibility and top performance. The machine excels in processing thermoplastics, carbon fiber, and engineering-grade polymers with outstanding accuracy and ease.
Suitable for More Materials
With its ability to heat up to 420℃, the G5Ultra Pellet 3D Printer excels in processing a wide range of thermoplastics and composites. This flexibility allows for experimenting with various pellets, including PA-CF,PA-GF,PC-CF, PLA, rPLA, PETG-GF, ABS, PS, GPPS, PP-GF, and more, enabling the creation of functional prototypes, artistic works, or educational models with desired material properties.
| G40 Pellet 3D Printer Parameters | |
|---|---|
| Molding technology | FGF Fused Granulate Fabrication |
| Built Volume | 3725×2500×1330mm |
| Machine Size | 5962×4220×4800mm |
| Discharge structure | Screw extrusion |
| Nozzle number | Single nozzl |
| Nozzle Tempature | ≤450°C |
| Heating bed temperature | ≤200°C |
| Particles diameter | 2-5mm |
| Precision and repeatability | 0.018/1000mm |
| Particle diameterr | 2-5mm |
| Print layer thickness | 0.2-1.0mm |
| Nozzle diameter | 3-8mm |
| Flow Rates | 25kg/h |
| Rated Power | 65KW |
| Files Format | STL/OBJ/AMF |
| Transfer method | U disk / WIFI printing |
| Slicing software | Piocreat Slicer/Cura/Simplify3D |
| Warranty | 12 months manufacturer's warranty |
| Technical Support | Unlimited lifetime technical support |
| G40 CNC machining parameters | |
|---|---|
| Processing size | 3400×2500×1330mm |
| Processing speed | 20m/min |
| Spindle power | 8.5KW |
| Processing mode | Five axis |
