Industrial Pellet Dryer & Vacuum Loader 25Kg
Industrial Pellet Dryer & Vacuum Loader 25Kg
Couldn't load pickup availability
Suction & Hot-Air Drying System for Plastic Pellets & Regrind
Reliable moisture removal for consistent extrusion, filament production, and molding.

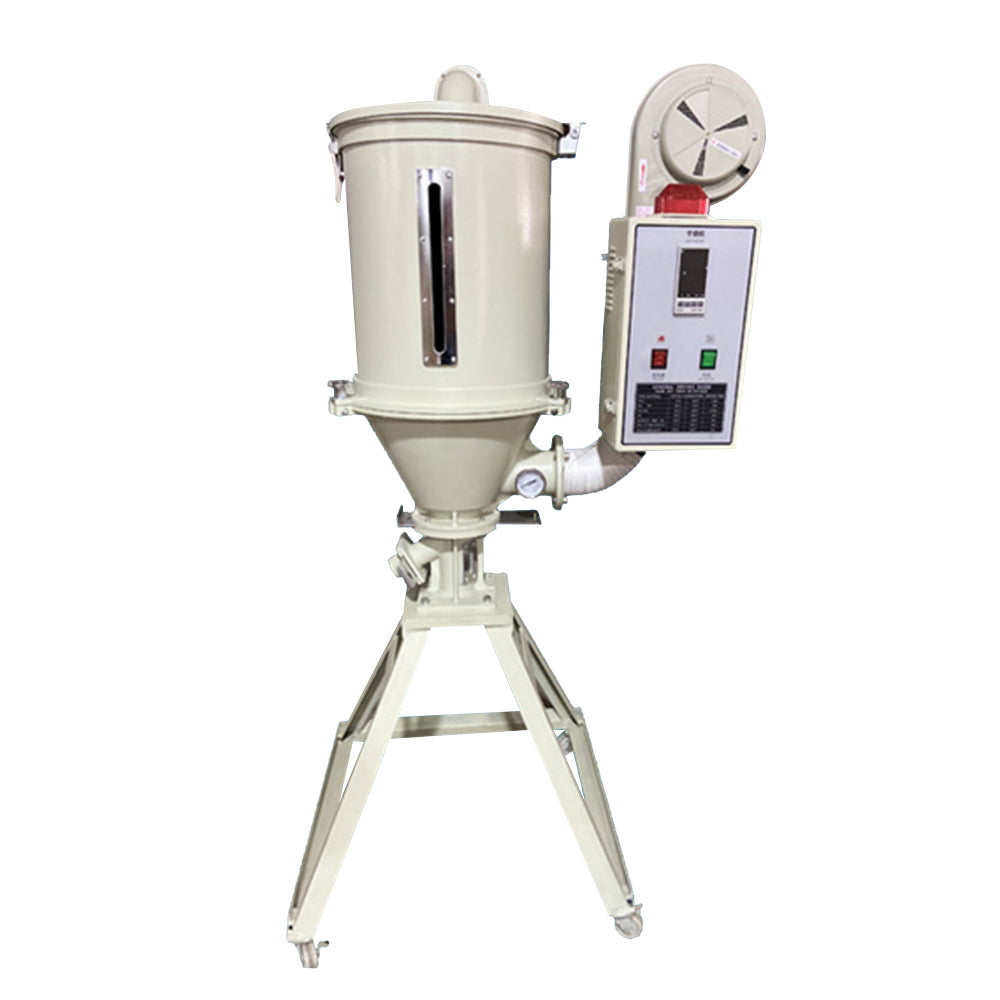

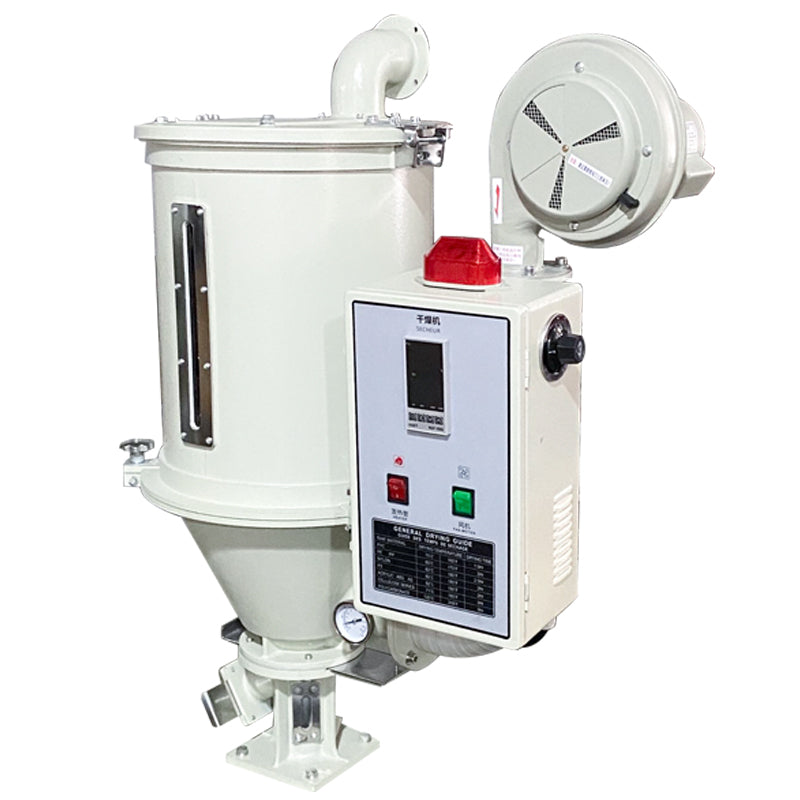

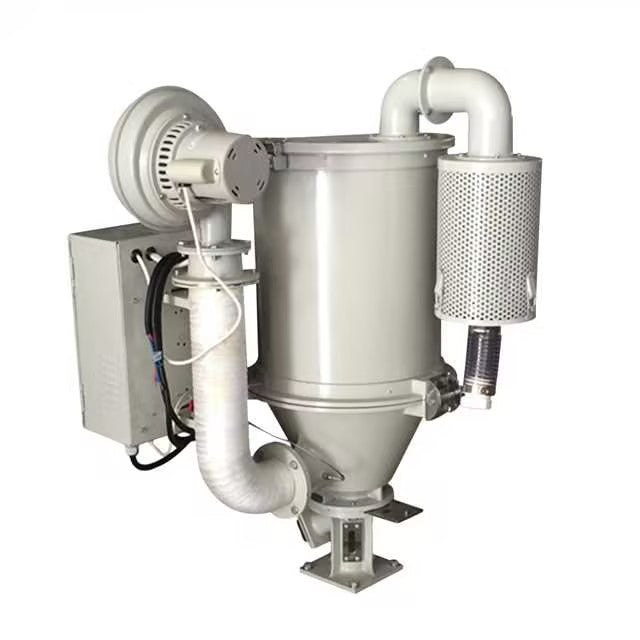

The 25 kg Pellet Dryer & Vacuum Loader is a compact industrial solution designed to dry plastic pellets and recycled granules while automatically feeding material into your processing equipment. It ensures stable material quality by eliminating moisture before extrusion or molding — a critical step for recycled plastics and filament production.
Why This Dryer Matters
Moisture in pellets causes:
- Bubbling and surface defects
- Weak filament or brittle parts
- Inconsistent extrusion flow
- Higher scrap rates
This dryer ensures your material is dry, clean, and process-ready every time.
Key Features
25 kg Drying Capacity
Ideal for small-to-mid scale recycling, filament extrusion, and R&D environments.
Integrated Vacuum Loader (TSA-300G)
Automatically conveys pellets without exposure to air or contamination.
Uniform Hot-Air Circulation
Even heat distribution for consistent drying throughout the hopper.
Precise Temperature Control
Optimized for engineering plastics and recycled materials.
Compact Vertical Design
Mounts directly on extruders, pelletizers, or hoppers.
Low Maintenance, Industrial Reliability
Designed for continuous operation with easy-access filters.
Supported Materials & Drying Temperatures
| Material | Recommended Temp |
|---|---|
| PE | 65–80 °C |
| PP | 65–80 °C |
| PS | 70–80 °C |
| ABS | 90–100 °C |
| Nylon (PA) | 90–95 °C |
| PC | 100–120 °C |
| POM | 80–90 °C |
Technical Specifications
🔹 Hot-Air Dryer (25 kg Model – TSH-25)
| Feature | Specification |
|---|---|
| Loading Capacity | 25 kg |
| Heating Power | 3.0 kW |
| Fan Power | 0.12 kW |
| Exterior Dimensions | 700 × 390 × 850 mm |
| Weight | 29 kg |
| Power Supply | AC 220V / 50Hz |
🔹 Vacuum Loader – TSA-300G
| Feature | Specification |
|---|---|
| Motor Power | 900 W |
| Feeding Capacity | Up to 350 kg/h |
| Suction Lift | 4 m |
| Storage Capacity | 7.5 L |
| Pipe Diameter | Φ38 mm |
| Hopper Size | 40 × 36 × 60 cm |
| Weight | 11 kg |
| Power Supply | AC 220V |
Ideal For
- Plastic recycling lines
- Filament extrusion systems
- 3D printing farms
- R&D labs & universities
- Injection molding prep
Works Perfectly With
- Plastic crushers & granulators
- Pelletizing systems
- Filament extrusion machines
- Complete 3D print recycling stations
What’s Included
- 25 kg hot-air pellet dryer (TSH-25)
- TSA-300G automatic vacuum loader
- Stainless steel suction tube
- Electrical control unit
- User manual & safety documentation
🛠 Maintenance & Longevity
- Clean air filter every 8 hours of operation

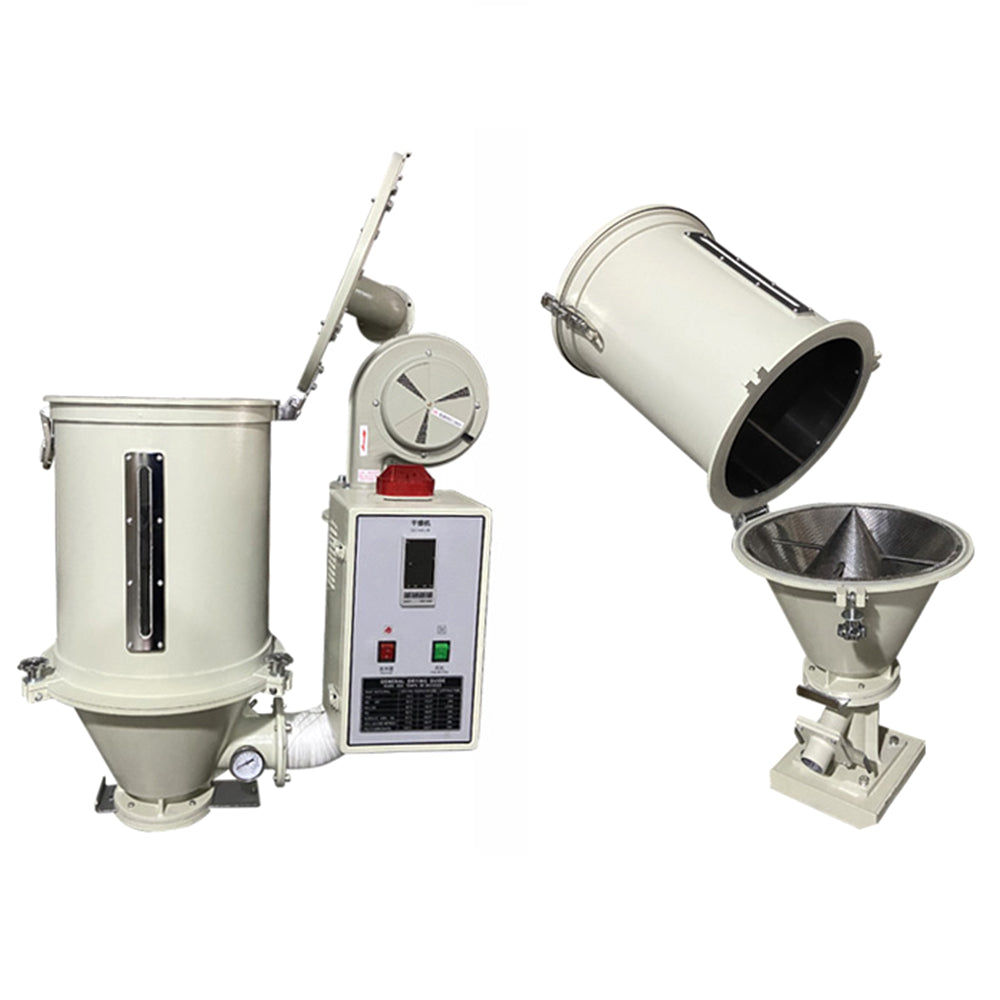

- Easy-access drying chamber
- Long service life with proper use
