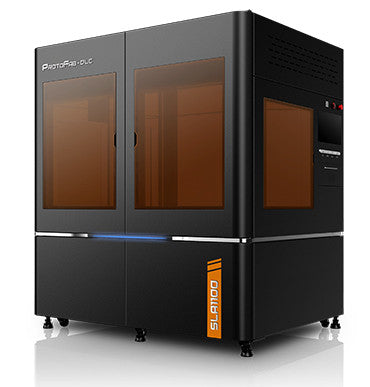

INDUSTRIAL SLA 3D PRINTER Protofab SLA1100A INCOMPLETE
INDUSTRIAL SLA 3D PRINTER Protofab SLA1100A INCOMPLETE
Regular price
Dhs. 203,500.00 AED
Regular price
Sale price
Dhs. 203,500.00 AED
Unit price
/
per
Couldn't load pickup availability
Important:
The price is Ex-works
Stereolithography SLA1100A 3D Printer-Compact Master
Extra-Large Industrial-Grade Building Capacity
Fabricates functional prototypes of even the most challenging parts in dimensions of up to 1100 mm X 600 mm X 450 mm, without any weak connection links. The Colossus pushes productivity and flexibility to a completely new level, satisfying the needs for any industry especially automotive and aerospace.
Extraordinary Printing Speed
We value your time; The SLA1100 is equipped with two lasers and two scanning mirrors, to offer double the printing efficiency than conventional printers, greatly reducing processing time and costs and enabling customized production of very large prototype models.
Top Quality Components
Inside the solid steel frame sits a highly stable granite reinforced printing platform with aerospace grade aluminum Z-axis module, to minimize vibration and maximize precision.
Wide Choice of Materials
A selection of over 20 different custom-designed printing materials with unique characteristics for functional prototypes and low-volume manufacturing.
Made-To-Measure Customization
We offer a considerable selection of customizations free of charge. Available upgrades include autofocus, automatic material refilling, environment sensors, as well as remote diagnostics and control, ensuring you are industry 4.0 ready.
Specification
| Build Size (xyz)1 | 1100 x 600 x 550 mm (43.31 x23.62 x 21.65 in) |
|---|---|
| Printing Speed | 100-350g/h |
| Scanning Speed | 6.0m/s (Recommended) 10.0m/s (Maximum) |
| Accuracy | Part Size< 100 mm(3.9 in): ±0.2 mm(±0.0079 in) Part Size≥ 100 mm(3.9 in):±0.2% x L |
| Layer Thickness | 0.1 mm (0.004 in) |
| Laser Type | Diode-pumped solid-state laser Nd:YVO4 |
| Optical System |
SCANLAB Galvanometer Scanner Beam Size: 0.12 - 0.2 mm |
| Operating Software | Sirius Intelligent Printing Control Software / Linux or Windows (Optional) |
| CAD Interface | STL Format Files |
| Machine Size W x D x H | 1960 x 1700 x 2500 mm (77.17 x 66.93 x 98.43 in) |
| Ambient Temperature | 22-25ºC (71.6-77℉) |
| Relative Humidity | Less than 40% |
| Power Requirements | 200-240VAC 50/60Hz Single Phase 10A |
