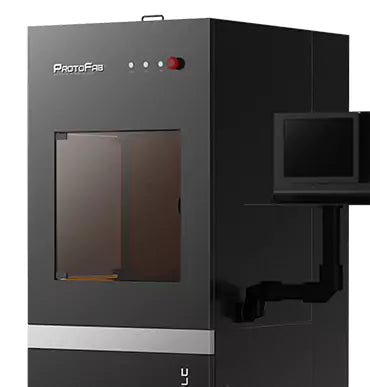

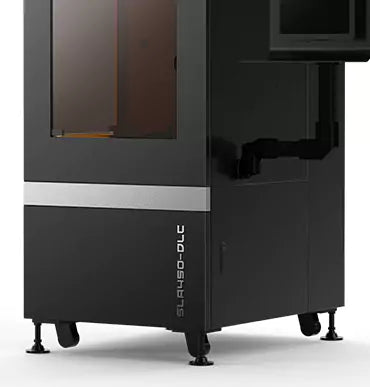

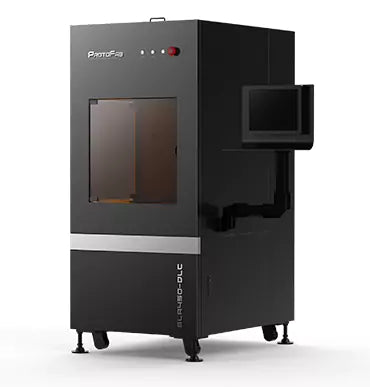

INDUSTRIAL SLA 3D PRINTER Protofab SLA450

INDUSTRIAL SLA 3D PRINTER Protofab SLA450

Regular price Dhs. 155,400.00 AED
Regular price Sale price Dhs. 155,400.00 AED
Sale Sold out

Important:

The price is Ex-works

Stereolithography SLA450 3D Printer-Compact Master

 True-to-CAD Accuracy and Surface Finish

Fabricates small and medium-sized parts up to 450 x 450 x 300 mm with 0.05 mm accuracy, the highest among our printers, and with surface roughness as low as 0.05 μm. These standard tolerances outperform those of injection-molding and can even compete with CNC.

Precise & Compact

The perfect choice for enabling 3D printing in environments with limited workspace. The highly stable printing platform with granite reinforcement and an aerospace-grade aluminum Z-axis module make quick and efficient prototyping virtually effortless.

Outstanding Printing Speeds

Equipped with a top of the line galvanometer optical system by ScanLab Germany, the SLA300/450 displays top scanning speeds and enhances production efficiency significantly.

Wide Choice of Materials

A selection of over 10 different custom-designed printing materials with unique characteristics for functional prototypes and low-volume manufacturing.

Made-To-Measure Customization

We offer a considerable selection of customizations free of charge. Available upgrades include autofocus, automatic material refilling, environment sensors, as well as remote diagnostics and control, ensuring you are industry 4.0 ready.

    Specification

    Model SLA450
    Build Size (xyz)1 450 x 450 x 300 mm (17.72 x 17.72 x 11.81 in)
    Printing Speed 75-150g/h
    Scanning Speed 6.0m/s (Recommended)  10.0m/s (Maximum)
    Accuracy Part Size< 100 mm(3.9 in): ±0.1 mm(±0.004 in)
    Part Size≥ 100 mm(3.9 in):±0.1% x L
    Layer Thickness 0.05 mm (0.002 in) – 0.25mm (0.039 in)
    Laser Type Diode-pumped solid-state laser Nd:YVO4
    Optical System

    SCANLAB Galvanometer Scanner

    Beam Size: 0.12 - 0.2 mm

    Operating Software Sirius Intelligent Printing Control Software / Linux or Windows (Optional)
    CAD Interface STL Format Files
    Machine Size W x D x H 880 x 1200 x 1850 mm (34.65 x 47.24 x 72.83 in)
    Ambient Temperature 22-25ºC (71.6-77℉)
    Relative Humidity Less than 40%
    Power Requirements 200-240VAC 50/60Hz Single Phase 16A
