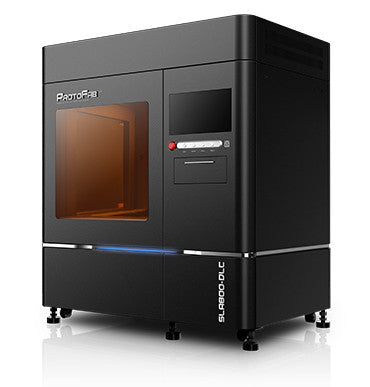

INDUSTRIAL SLA 3D PRINTER Protofab SLA800A
INDUSTRIAL SLA 3D PRINTER Protofab SLA800A
Regular price
Dhs. 203,500.00 AED
Regular price
Sale price
Dhs. 203,500.00 AED
Unit price
/
per
Couldn't load pickup availability
Important:
The price is Ex-works
Stereolithography SLA800A 3D Printer-Compact Master
Top Quality Components
Inside the solid steel frame sits the highly stable granite reinforced printing platform with an aerospace-grade aluminum Z-axis module, to minimize vibration and maximize precision. Superior components and fine workmanship make the SLA800 an indispensable workhorse.
Large Industrial-Grade Building Capacity
Fabricates functional and challenging prototypes of up to 800 mm X 600 mm X 500 mm in size, without any weak connection links.
True-to-CAD Accuracy and Surface Finish
Equipped with fast and intuitive printer interface software, and a galvanometer optical system by ScanLab Germany, the SLA800 displays top scanning speeds and enhances production efficiency significantly. Surface roughness as low as 0.05 μm makes post-processing simple and efficient.
Wide Choice of Materials
A selection of over 20 different custom-designed printing materials with unique characteristics for functional prototypes and low-volume manufacturing.
Made-To-Measure Customization
We offer a considerable selection of customizations free of charge. Available upgrades include autofocus, automatic material refilling, environment sensors, as well as remote diagnostics and control, ensuring you are industry 4.0 ready.
Specification
| Build Size (xyz)1 | SLA800A: 800 x 600 x 400 mm (31.5 x 23.62 x 15.75in) SLA800B: 800 x 800 x 550 mm (31.5 x 31.5 x 21.65 in) |
|---|---|
| Printing Speed | 75-180g/h |
| Scanning Speed | 6.0m/s (Recommended) 10.0m/s (Maximum) |
| Accuracy | Part Size< 100 mm(3.9 in): ±0.15 mm(±0.0059 in) Part Size≥ 100 mm(3.9 in):±0.15% x L |
| Layer Thickness | 0.1 mm (0.004 in) |
| Laser Type | Diode-pumped solid-state laser Nd:YVO4 |
| Optical System |
SCANLAB Germany Galvanometer Scanner Beam Size: 0.12 - 0.2 mm |
| Operating Software | Sirius Intelligent Printing Control Software / Linux or Windows (Optional) |
| CAD Interface | STL Format Files |
| Machine Size W x D x H | SLA800A:1830 x 1300 x 2060 mm (72.05 x 51.18 x 81.10 in) SLA800B:1880 x 1570 x 2350 mm (74.02 x 61.81 x 92.52 in) |
| Ambient Temperature | 22-25ºC (71.6-77℉) |
| Relative Humidity | Less than 40% |
| Power Requirements | 200-240VAC 50/60Hz Single Phase 16A |
