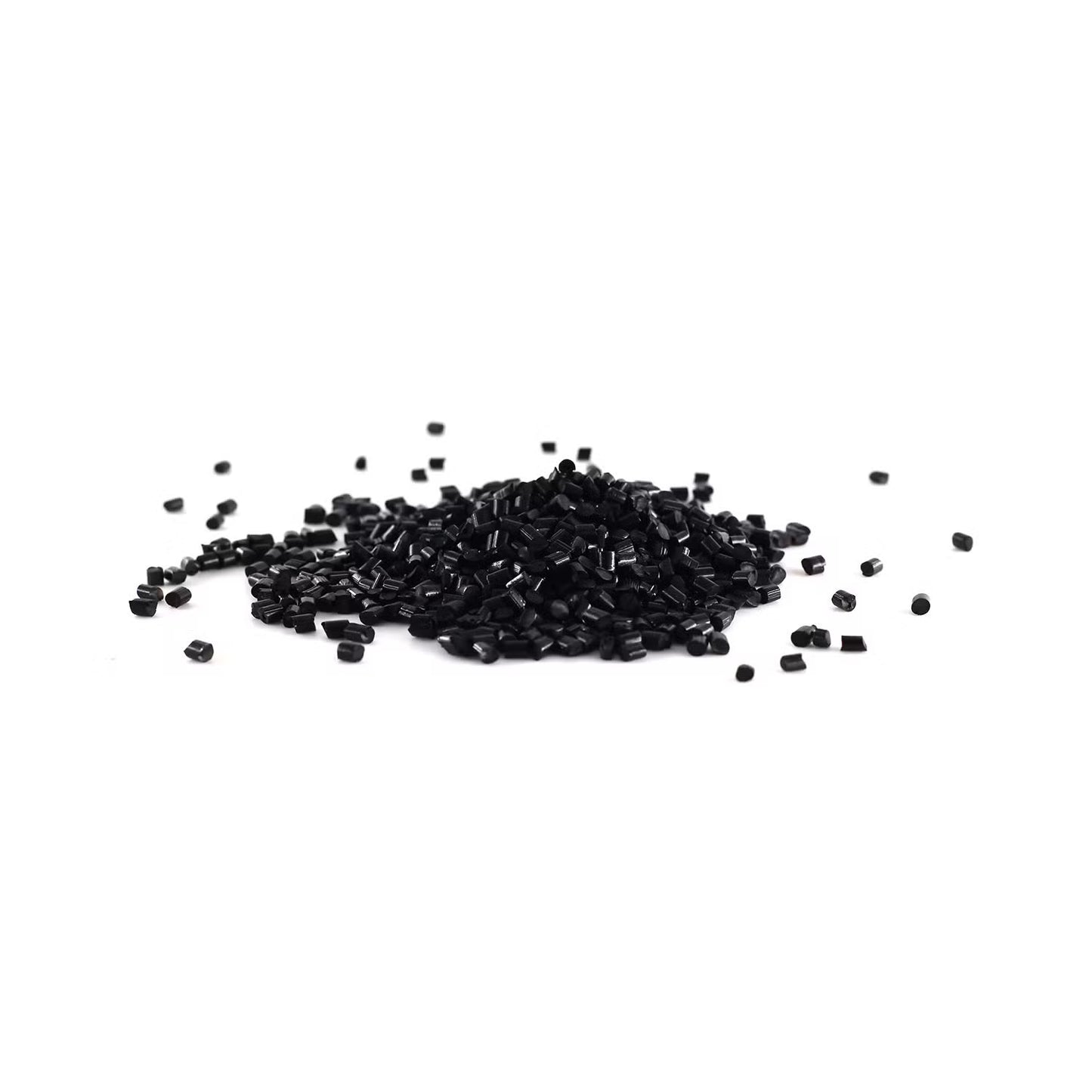

Ultran6 30CF Nylon Granules (Pellets) for FGF 3D Printers (Copy)

Easy to Recycle

This material is designed for easy recycling, contributing to sustainability by reducing environmental impact. Its composition allows for efficient recycling processes, which helps minimize waste and supports a circular economy.

Compound based on polyamide PA-6, filled with discrete carbon fiber from 20 to 50 microns, mass fraction of fibers up to 30%. The material is processed by injection molding and extrusion. Filament for 3D printing is produced from the material based on ULTRAN 630CF.

Material Datasheet:

• Mass fraction of carbon fibers -  30%

• Bending stress at maximum load -  300  MPa

• Tensile strength, not less than -  200  MPa

• Compressive strength -  192  MPa

• Modulus of elasticity -  15000  MPa

• Relative elongation at tension -  4%

• Bending value at failure -  5.6 mm

• Bending temperature under load -  209  °C

• Rockwell hardness -  214  HRm

• Hardness by ball indentation method, not less than - 200  N/mm2

• Charpy impact strength without notch -   50

• Coefficient of friction on steel - 0.023

• Weight wear, load 538.3 N mg 0.837

• Density - 1.24  g/cm3

• Temperature during die casting - 270-285  °C

• Extrusion temperature - 250-270  °C

• Shrinkage during casting - 0.2-0.3  °C

• Surface electrical resistance - 10*3  Ohm


ULTRAN 630CF is manufactured in accordance with TU 222929-001-09885684-2018
UPA 6-30M can be manufactured to meet the requirements of TU 2253-001-18070047-00 , TU 2290-010-96937987-2012

 Applications:

ULTRAN 630CF is a high-strength material with excellent characteristics for various applications. It is used in different industries due to its wear resistance, strength, and anti-static properties. Here’s a list of products that can be made from ULTRAN 630CF:

• Sliding bearings – Due to its wear-resistant properties, ULTRAN 630CF is used to make bearings, ensuring a long service life.
• Bushings for transmission mechanisms – The material’s durability makes it ideal for use in transmission parts.
• Joints in braking lever mechanisms of railway cars – ULTRAN 630CF is suitable for parts involved in high stress and mechanical movement.
• Medical equipment components – The material is used in parts of medical devices due to its strength and precision.
• Anti-static and current-dissipating parts and housings of electronic devices – ULTRAN 630CF helps prevent static buildup in sensitive electronic equipment.
• Hydraulic cylinder seals – The material’s resistance to wear and pressure makes it suitable for sealing in hydraulic systems.
• Explosion-proof gears – ULTRAN 630CF is used for gears in environments where explosion hazards are present.
• Parts for firearms and ammunition belts – It is used for making durable parts in firearm mechanisms and ammunition belts.
• Sports equipment – The material is used in various sports items requiring strength and durability.
